Flowable injection technique—a composite revolution with CLEARFIL MAJESTY ES Flow Low

Home / Marketplace / Kuraray Noritake/ News

Kuraray Noritake

www.kuraraynoritake.eu
save
The result immediately after a minimally invasive treatment protocol for a patient who presented with worn teeth, visible abrasion, erosion and crowding in the mandibular arch. (All images: Kuraray Noritake Dental)
Kuraray Noritake

Kuraray Noritake

Fri. 15. March 2024

save

A specialist in minimally invasive dentistry, Dr Michał Jaczewski graduated from Wroclaw Medical University in 2006, and today he runs his own private practice in the city of Legnica in Poland. In this clinical case, a patient presented to Dr Jaczewski’s practice wishing to improve the aesthetics of her smile. After an aesthetic and functional analysis, it was decided to align and restore the teeth using a minimally invasive protocol with flowable composite.

    Fig. 1: The patient had worn teeth, visible abrasion, erosion and crowding in the mandibular arch.
    Fig. 1: The patient had worn teeth, visible abrasion, erosion and crowding in the mandibular arch.

    Fig. 2: Orthodontic treatment was performed to align the full arch.
    Fig. 2: Orthodontic treatment was performed to align the full arch.

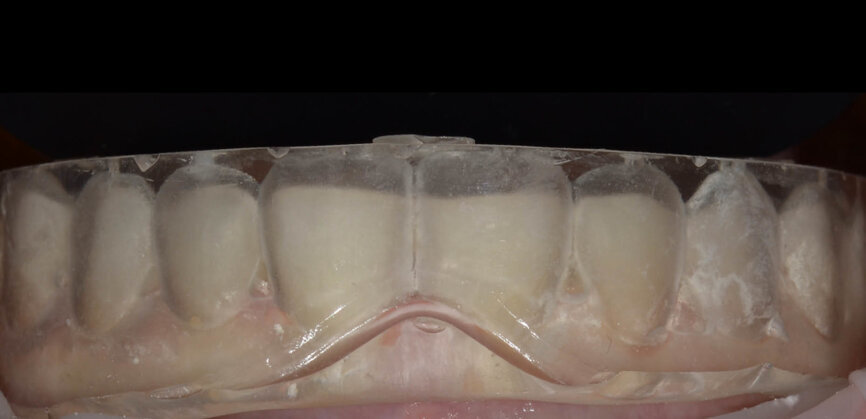

    Fig. 3: A silicone mould was used for the flowable injection technique to restore the teeth with flowable composite. The silicone injection mould had injection channels prepared and was placed to check for proper fit.
    Fig. 3: A silicone mould was used for the flowable injection technique to restore the teeth with flowable composite. The silicone injection mould had injection channels prepared and was placed to check for proper fit.

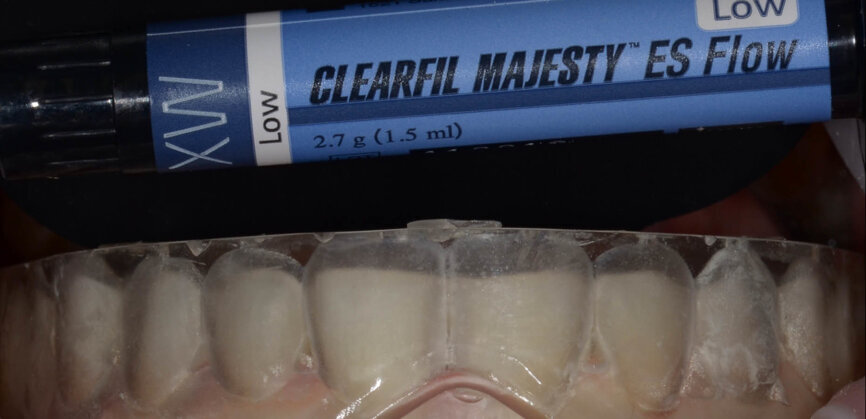

    Fig. 4: For this case, it was decided to use CLEARFIL MAJESTY ES Flow Low in Shade XW (Kuraray Noritake Dental), the properties and flowability of which made it ideal for a case like this.
    Fig. 4: For this case, it was decided to use CLEARFIL MAJESTY ES Flow Low in Shade XW (Kuraray Noritake Dental), the properties and flowability of which made it ideal for a case like this.

    Fig. 5: PTFE tape was used to separate the teeth.
    Fig. 5: PTFE tape was used to separate the teeth.

    Fig. 6: The restoration is completely additive; the teeth are not prepared at all. Total etching of the enamel is the best pretreatment in this situation. K-ETCHANT Syringe (35% phosphoric acid; Kuraray Noritake Dental) was applied for 10 seconds.
    Fig. 6: The restoration is completely additive; the teeth are not prepared at all. Total etching of the enamel is the best pretreatment in this situation. K-ETCHANT Syringe (35% phosphoric acid; Kuraray Noritake Dental) was applied for 10 seconds.

    Fig. 7: A surgical suction tip was used to carefully remove the phosphoric acid gel and protect the isolations on the teeth, followed by rinsing off completely with water in the usual manner.
    Fig. 7: A surgical suction tip was used to carefully remove the phosphoric acid gel and protect the isolations on the teeth, followed by rinsing off completely with water in the usual manner.

    Fig. 8: Each tooth was gently air-dried for 10 seconds. CLEARFIL Universal Bond Quick was applied with a rubbing motion without additional waiting time, followed by drying of the treated surfaces by gentle blowing of air for more than 5 seconds until the bonding no longer moved.
    Fig. 8: Each tooth was gently air-dried for 10 seconds. CLEARFIL Universal Bond Quick was applied with a rubbing motion without additional waiting time, followed by drying of the treated surfaces by gentle blowing of air for more than 5 seconds until the bonding no longer moved.

    Fig. 9: Each bonded tooth was light-polymerised for 10 seconds.
    Fig. 9: Each bonded tooth was light-polymerised for 10 seconds.

    Fig. 10: Using the “Treat one, skip one” protocol, several teeth were restored simultaneously by injecting CLEARFIL MAJESTY ES Flow Low into the silicone mould.
    Fig. 10: Using the “Treat one, skip one” protocol, several teeth were restored simultaneously by injecting CLEARFIL MAJESTY ES Flow Low into the silicone mould.

    Fig. 11: Situation directly after the first round of injections.
    Fig. 11: Situation directly after the first round of injections.

    Fig. 12: Situation after restoring all of the teeth, before polishing.
    Fig. 12: Situation after restoring all of the teeth, before polishing.

    Fig. 13: To create a natural gloss, the following polishing protocol was used: (1) Sof-Lex discs (3M); (2) CLEARFIL Twist DIA for Composite polishing wheels; (3) diamond paste; and (4) zinc oxide paste.
    Fig. 13: To create a natural gloss, the following polishing protocol was used: (1) Sof-Lex discs (3M); (2) CLEARFIL Twist DIA for Composite polishing wheels; (3) diamond paste; and (4) zinc oxide paste.

    Fig. 14: This polishing protocol yielded high-shine results.
    Fig. 14: This polishing protocol yielded high-shine results.

    Fig. 15: Final restoration, immediately after treatment.
    Fig. 15: Final restoration, immediately after treatment.

    Fig. 1: The patient had worn teeth, visible abrasion, erosion and crowding in the mandibular arch.
    Fig. 2: Orthodontic treatment was performed to align the full arch.
    Fig. 3: A silicone mould was used for the flowable injection technique to restore the teeth with flowable composite. The silicone injection mould had injection channels prepared and was placed to check for proper fit.
    Fig. 4: For this case, it was decided to use CLEARFIL MAJESTY ES Flow Low in Shade XW (Kuraray Noritake Dental), the properties and flowability of which made it ideal for a case like this.
    Fig. 5: PTFE tape was used to separate the teeth.
    Fig. 6: The restoration is completely additive; the teeth are not prepared at all. Total etching of the enamel is the best pretreatment in this situation. K-ETCHANT Syringe (35% phosphoric acid; Kuraray Noritake Dental) was applied for 10 seconds.
    Fig. 7: A surgical suction tip was used to carefully remove the phosphoric acid gel and protect the isolations on the teeth, followed by rinsing off completely with water in the usual manner.
    Fig. 8: Each tooth was gently air-dried for 10 seconds. CLEARFIL Universal Bond Quick was applied with a rubbing motion without additional waiting time, followed by drying of the treated surfaces by gentle blowing of air for more than 5 seconds until the bonding no longer moved.
    Fig. 9: Each bonded tooth was light-polymerised for 10 seconds.
    Fig. 10: Using the “Treat one, skip one” protocol, several teeth were restored simultaneously by injecting CLEARFIL MAJESTY ES Flow Low into the silicone mould.
    Fig. 11: Situation directly after the first round of injections.
    Fig. 12: Situation after restoring all of the teeth, before polishing.
    Fig. 13: To create a natural gloss, the following polishing protocol was used: (1) Sof-Lex discs (3M); (2) CLEARFIL Twist DIA for Composite polishing wheels; (3) diamond paste; and (4) zinc oxide paste.
    Fig. 14: This polishing protocol yielded high-shine results.
    Fig. 15: Final restoration, immediately after treatment.
