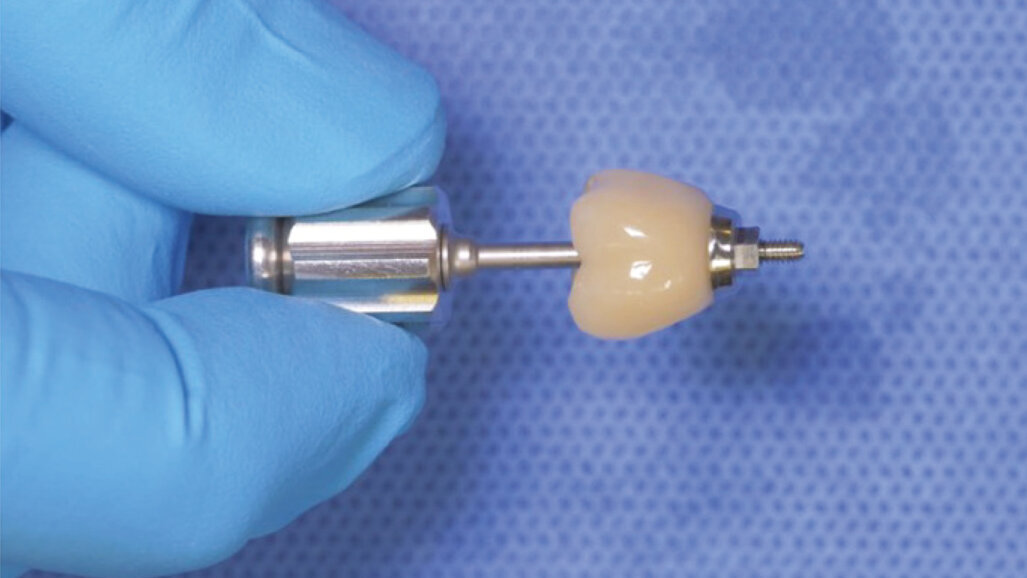

The technique shown in this case study for titanium base implants can be used in the treatment of the abutment and the restoration with any implant restoration combination. (All images: Greg Campbell/Kuraray Noritake Dental)
Dr Greg Campbell

Dr Greg Campbell

Thu. 18. July 2024

save

Needing no separate primer or silane, PANAVIA SA Cement Universal simplifies the bonding of any restoration to implant abutments—thanks to its proprietary technology. Independent research has confirmed that the use of this new dual-monomer technology does not sacrifice adhesion or durability for glass-based ceramics or zirconia. The technique shown in this case study is for titanium base implants; however, the basic technique used in the treatment of the abutment and the restoration may be used with any implant restoration combination.

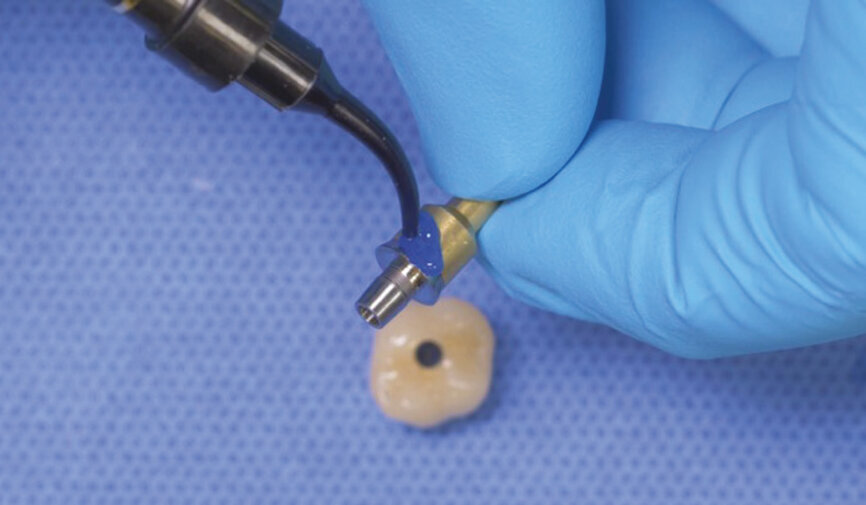

    Fig. 1: After attaching the titanium abutment to the implant analogue, protect the base of the abutment by applying block-out resin.
    Fig. 1: After attaching the titanium abutment to the implant analogue, protect the base of the abutment by applying block-out resin.

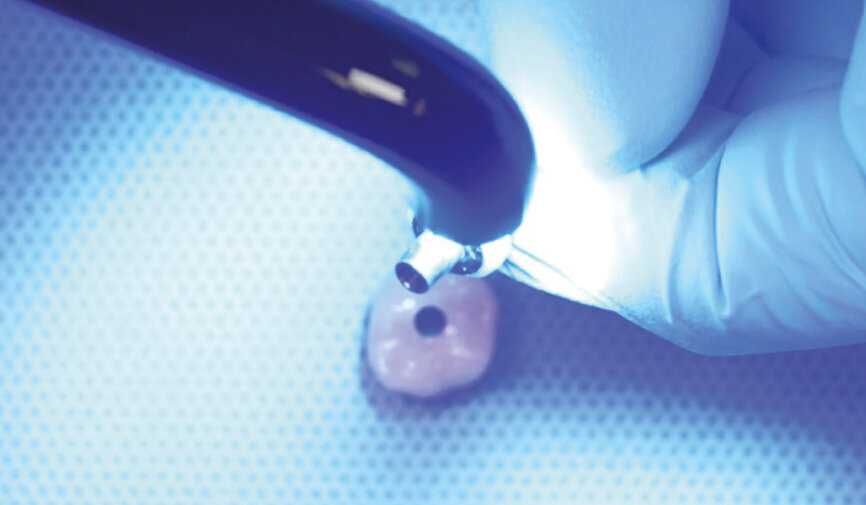

    Fig. 2: Light-polymerise the block-out resin.
    Fig. 2: Light-polymerise the block-out resin.

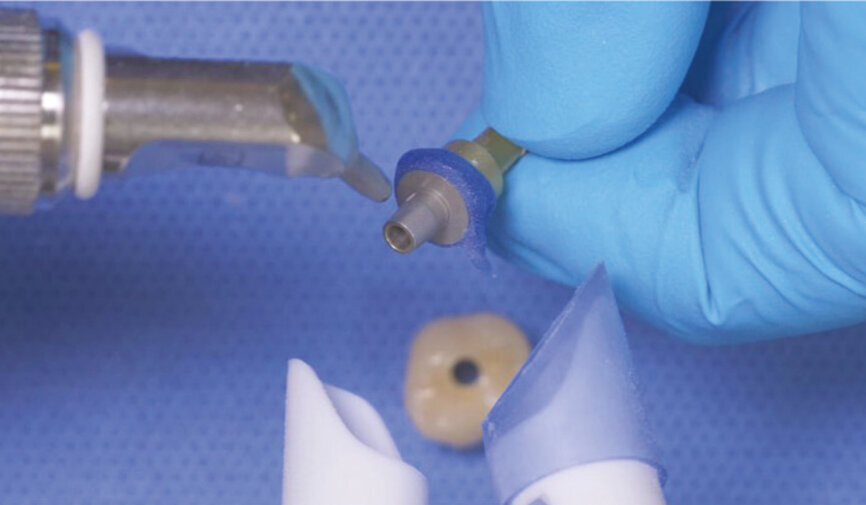

    Fig. 3: Air abrade the abutment with 30–50 μm alumina powder at 220.6 kPa.
    Fig. 3: Air abrade the abutment with 30–50 μm alumina powder at 220.6 kPa.

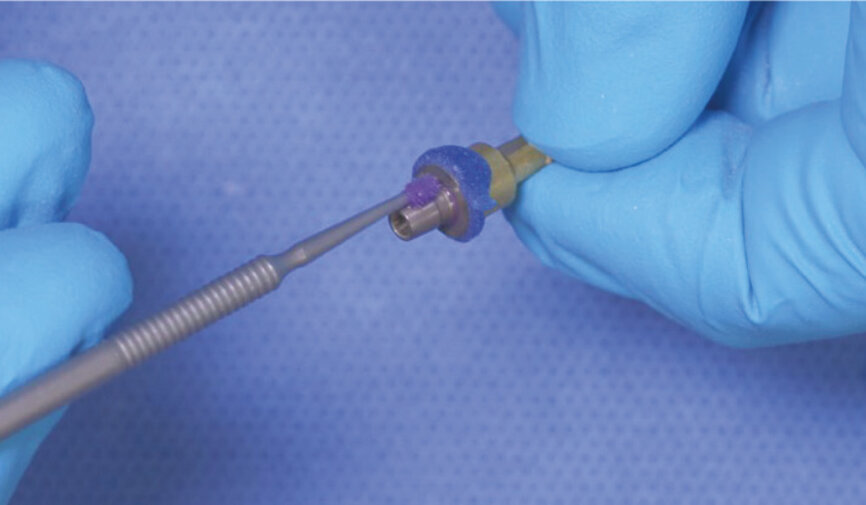

    Fig. 4: Clean the abutment with KATANA Cleaner by rubbing for 10 seconds and then rinse and dry the abutment.
    Fig. 4: Clean the abutment with KATANA Cleaner by rubbing for 10 seconds and then rinse and dry the abutment.

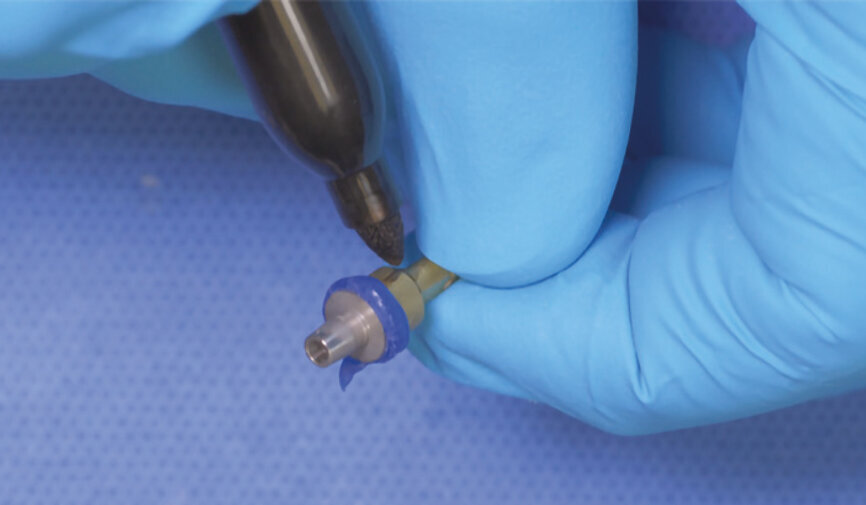

    Fig. 5: Mark the index position (notch) on the implant analogue.
    Fig. 5: Mark the index position (notch) on the implant analogue.

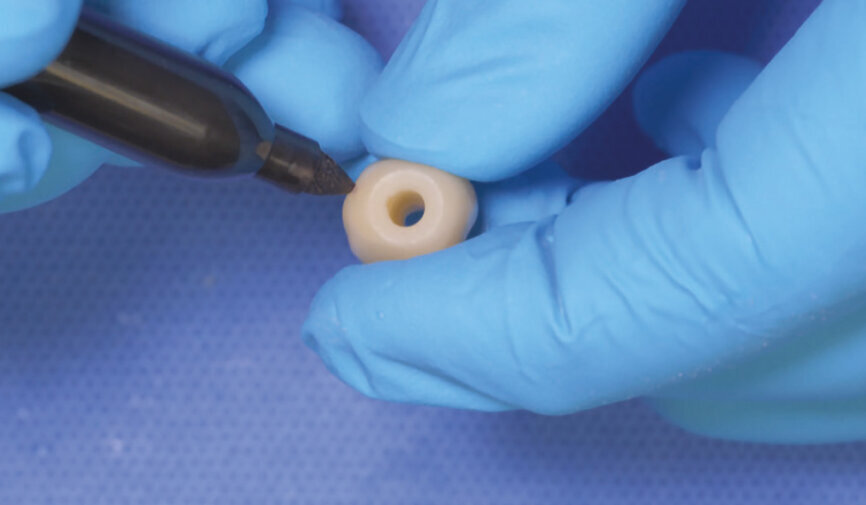

    Fig. 6: Mark the index position on the crown.
    Fig. 6: Mark the index position on the crown.

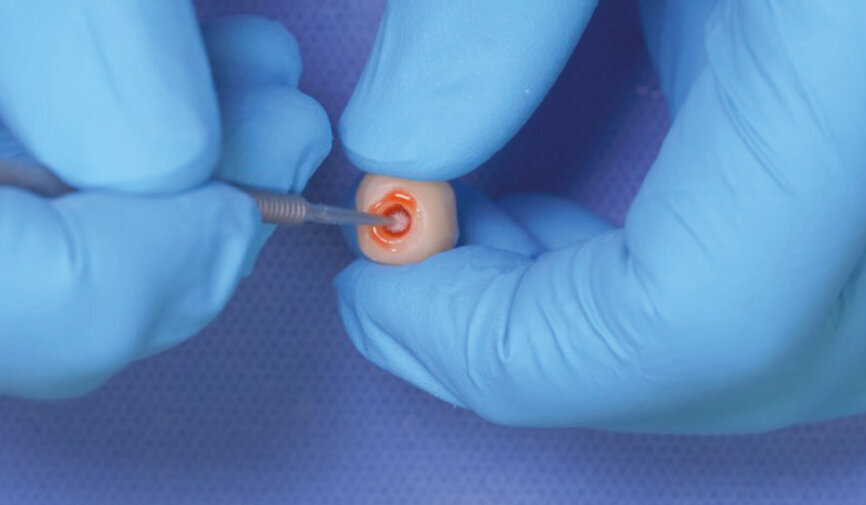

    Fig. 7: If seating a lithium disilicate crown, etch the internal surfaces with a 5% hydrofluoric acid for 20 seconds and then rinse and dry the surfaces. If seating a zirconia crown, air abrade the internal surfaces at 96.5–399.9 kPa.
    Fig. 7: If seating a lithium disilicate crown, etch the internal surfaces with a 5% hydrofluoric acid for 20 seconds and then rinse and dry the surfaces. If seating a zirconia crown, air abrade the internal surfaces at 96.5–399.9 kPa.

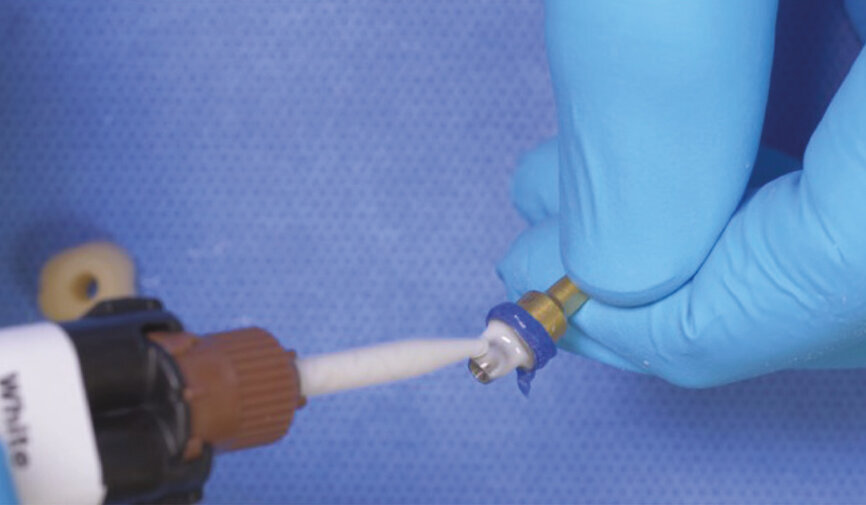

    Fig. 8: Inject PANAVIA SA Cement Universal (in the white shade) on to the treated and cleaned abutment.
    Fig. 8: Inject PANAVIA SA Cement Universal (in the white shade) on to the treated and cleaned abutment.

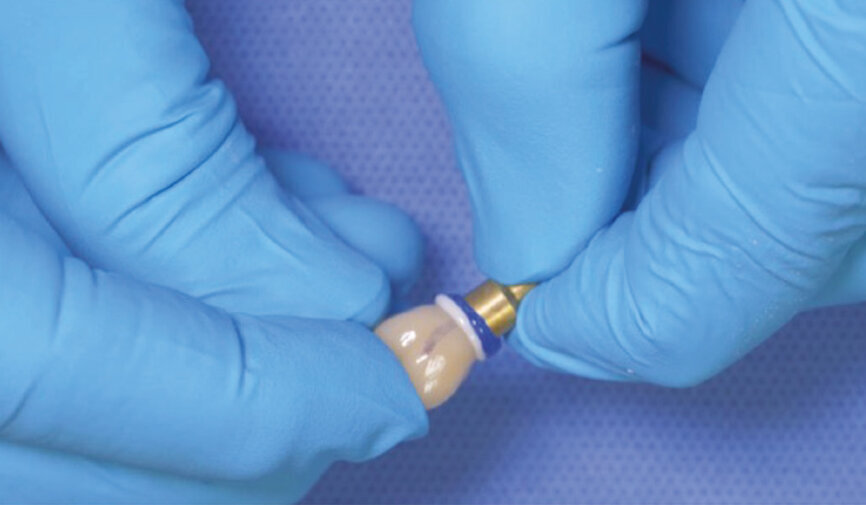

    Fig. 9: Align the index points and seat the crown on to the abutment.
    Fig. 9: Align the index points and seat the crown on to the abutment.

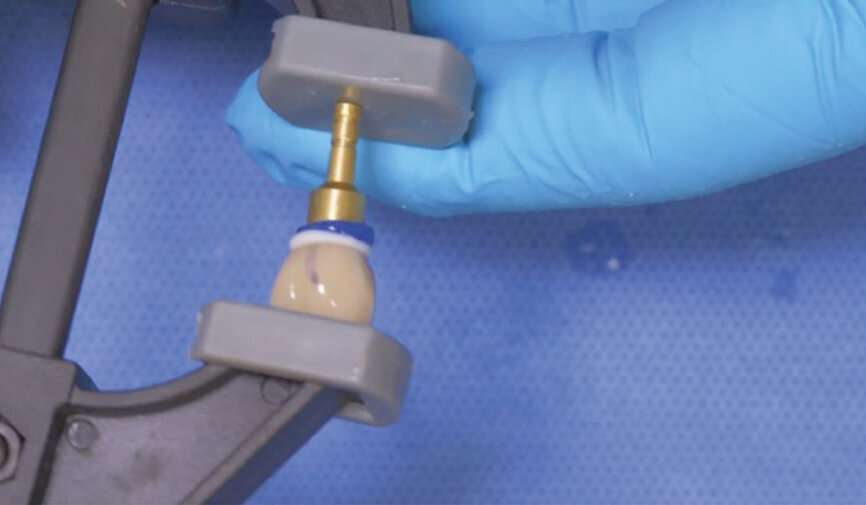

    Fig. 10: Place the crown and the implant into clamps and lightly tighten.
    Fig. 10: Place the crown and the implant into clamps and lightly tighten.

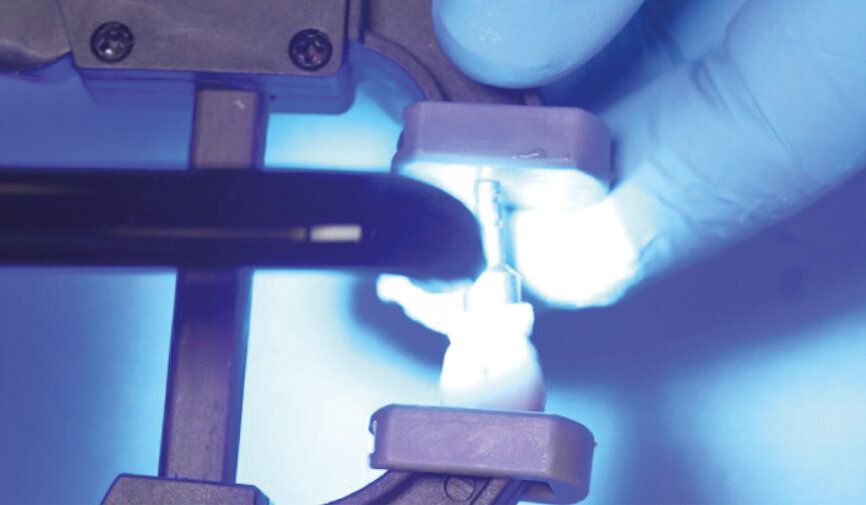

    Fig. 11: Light-polymerise the excess cement for 2–5 seconds, depending on the curing light output and the distance at which it is held.
    Fig. 11: Light-polymerise the excess cement for 2–5 seconds, depending on the curing light output and the distance at which it is held.

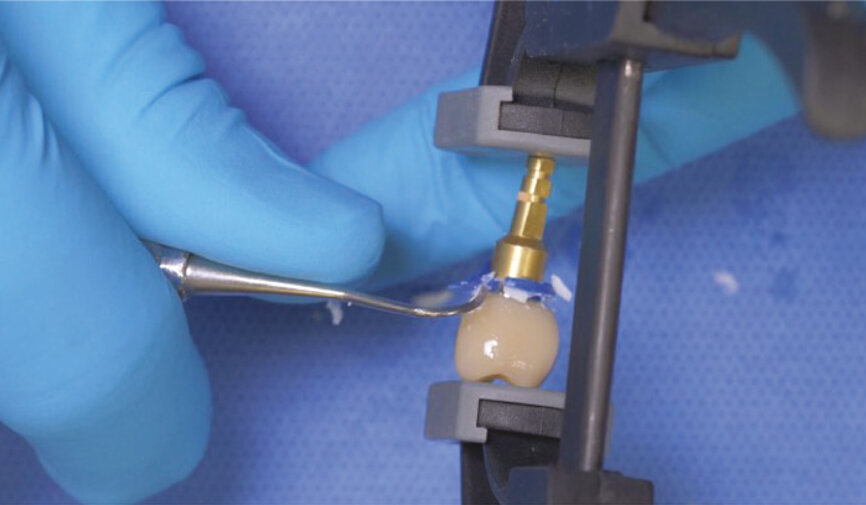

    Fig. 12: Remove the excess cement and block-out resin with an explorer—PANAVIA SA Cement Universal is extremely easy to clean up.
    Fig. 12: Remove the excess cement and block-out resin with an explorer—PANAVIA SA Cement Universal is extremely easy to clean up.

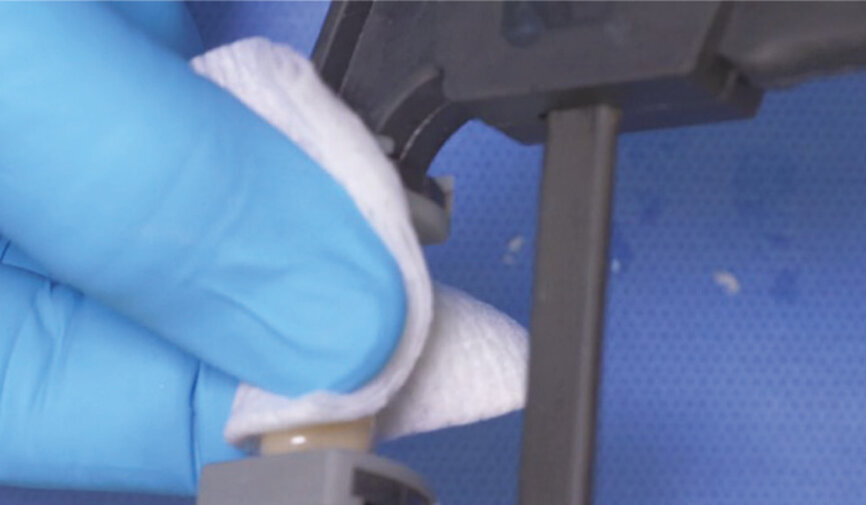

    Fig. 13: Wipe off any remaining resin with gauze.
    Fig. 13: Wipe off any remaining resin with gauze.

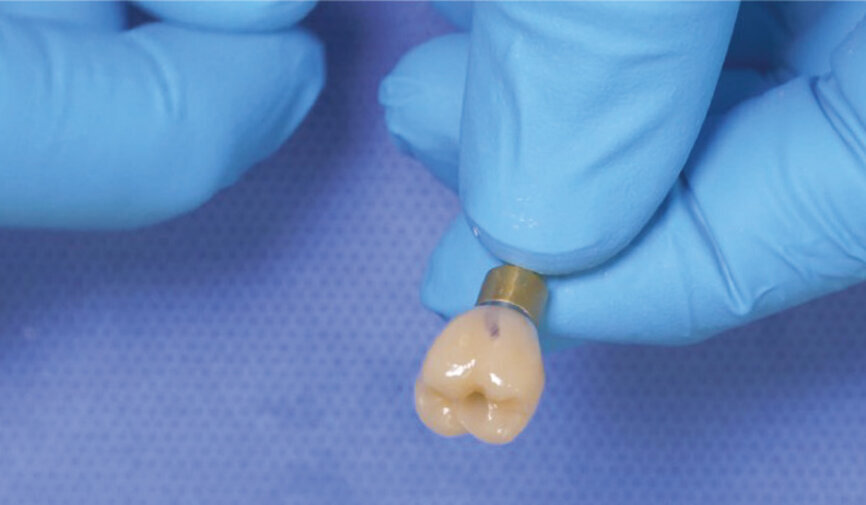

    Fig. 14: Remove the index mark with alcohol and gauze.
    Fig. 14: Remove the index mark with alcohol and gauze.

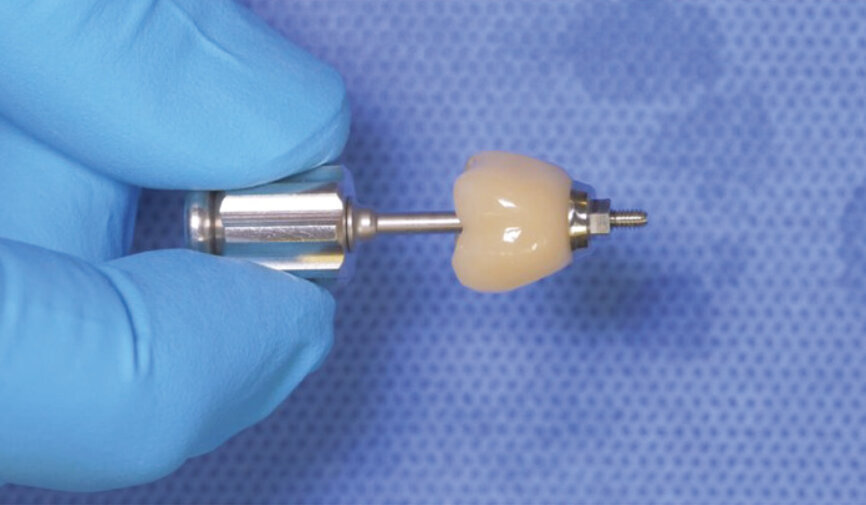

    Fig. 15: Clean and polish the restoration prior to seating. Surfaces that will come into contact with soft tissue should be polished.
    Fig. 15: Clean and polish the restoration prior to seating. Surfaces that will come into contact with soft tissue should be polished.

    Fig. 1: After attaching the titanium abutment to the implant analogue, protect the base of the abutment by applying block-out resin.
    Fig. 2: Light-polymerise the block-out resin.
    Fig. 3: Air abrade the abutment with 30–50 μm alumina powder at 220.6 kPa.
    Fig. 4: Clean the abutment with KATANA Cleaner by rubbing for 10 seconds and then rinse and dry the abutment.
    Fig. 5: Mark the index position (notch) on the implant analogue.
    Fig. 6: Mark the index position on the crown.
    Fig. 7: If seating a lithium disilicate crown, etch the internal surfaces with a 5% hydrofluoric acid for 20 seconds and then rinse and dry the surfaces. If seating a zirconia crown, air abrade the internal surfaces at 96.5–399.9 kPa.
    Fig. 8: Inject PANAVIA SA Cement Universal (in the white shade) on to the treated and cleaned abutment.
    Fig. 9: Align the index points and seat the crown on to the abutment.
    Fig. 10: Place the crown and the implant into clamps and lightly tighten.
    Fig. 11: Light-polymerise the excess cement for 2–5 seconds, depending on the curing light output and the distance at which it is held.
    Fig. 12: Remove the excess cement and block-out resin with an explorer—PANAVIA SA Cement Universal is extremely easy to clean up.
    Fig. 13: Wipe off any remaining resin with gauze.
    Fig. 14: Remove the index mark with alcohol and gauze.
    Fig. 15: Clean and polish the restoration prior to seating. Surfaces that will come into contact with soft tissue should be polished.
