Subsequently, human histology studies2, 3 established that the LANAP resulted in “periodontal regeneration—true regeneration of the attachment apparatus (new cementum, new periodontal ligament, and new alveolar bone) on a previously diseased root surface” (2016 510(k) clearance No. K151763).
The LAPIP emerged from the LANAP as a stand-alone procedure.4–7 The indication for the LANAP is moderate to advanced periodontitis,* whereas the LAPIP is indicated for peri-implantitis treatment.** The basic steps in the two protocols are the same and have adjustments for the whole mouth versus a single site, the responses to irradiation of root cementum versus implant titanium, and differences in surgical objectives.
A recent review of published studies of peri-implantitis laser treatment concluded that laser treatment enhances bone growth, but a quantitative analysis of bone-level changes is limited.9 The authors called for greater relevance and translation of the research findings to the clinician. This report addresses those concerns with a detailed analysis of the clinical outcomes and a quantitative description of changes in radiographic density two to five years after undergoing a LAPIP in a private practice setting.
Dr Schwarz completed training in the LAPIP in September 2013. A retrospective analysis of the 222 sequential patients with 437 failing dental implants that were treated during the following three years was performed.7 That study was focused on the short-term efficacy of the LAPIP. A statistically significant reduction of clinical signs of erythema, bleeding and suppuration and reduced probing depth (PD) at the first follow-up visit (median period: 7.6 months; P < 0.001) was noted. The survival rate, the percentage of intact implants, was 94% over the longest follow-up period (median: 13.1 months) among those in the analysis.

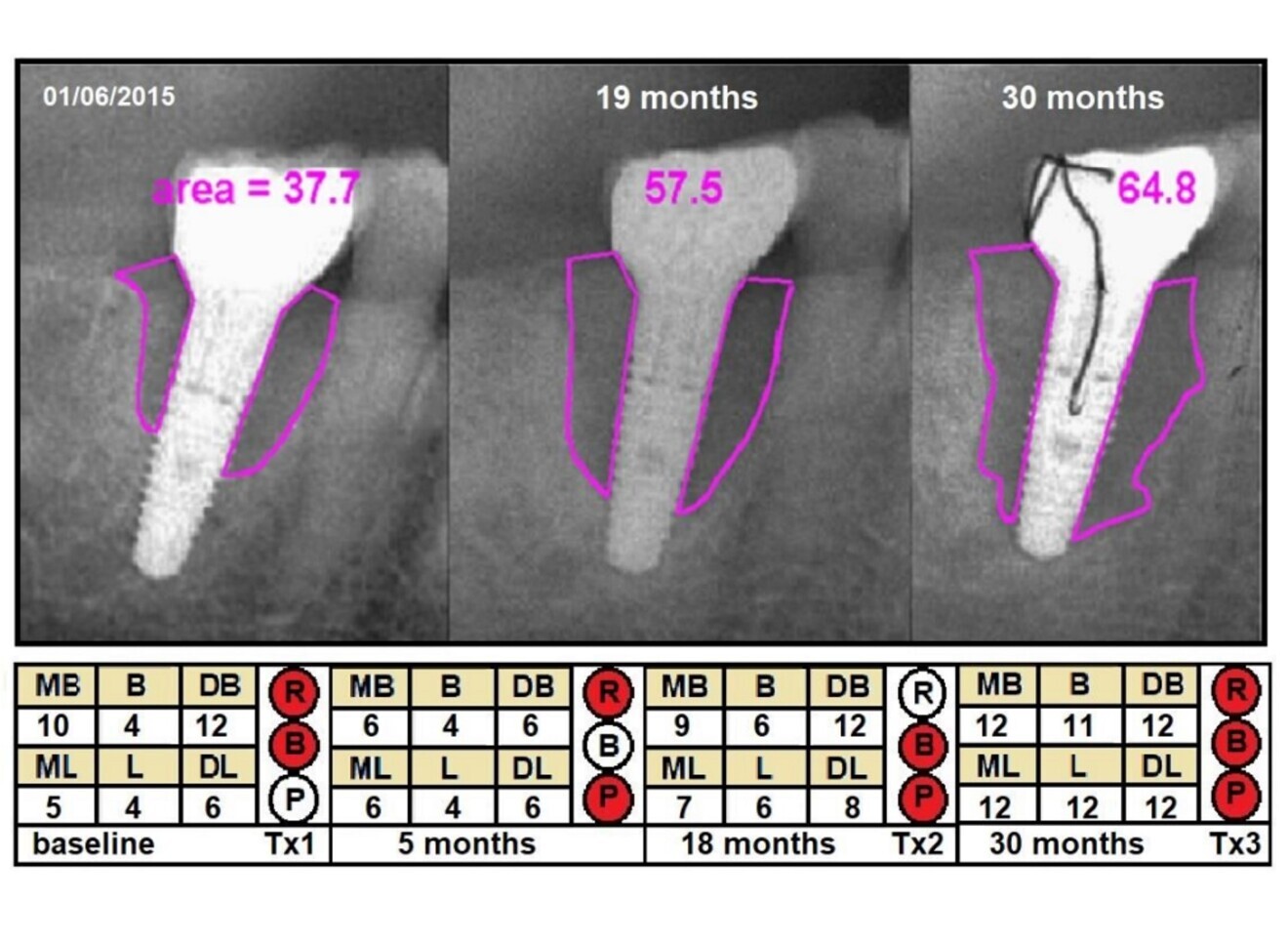

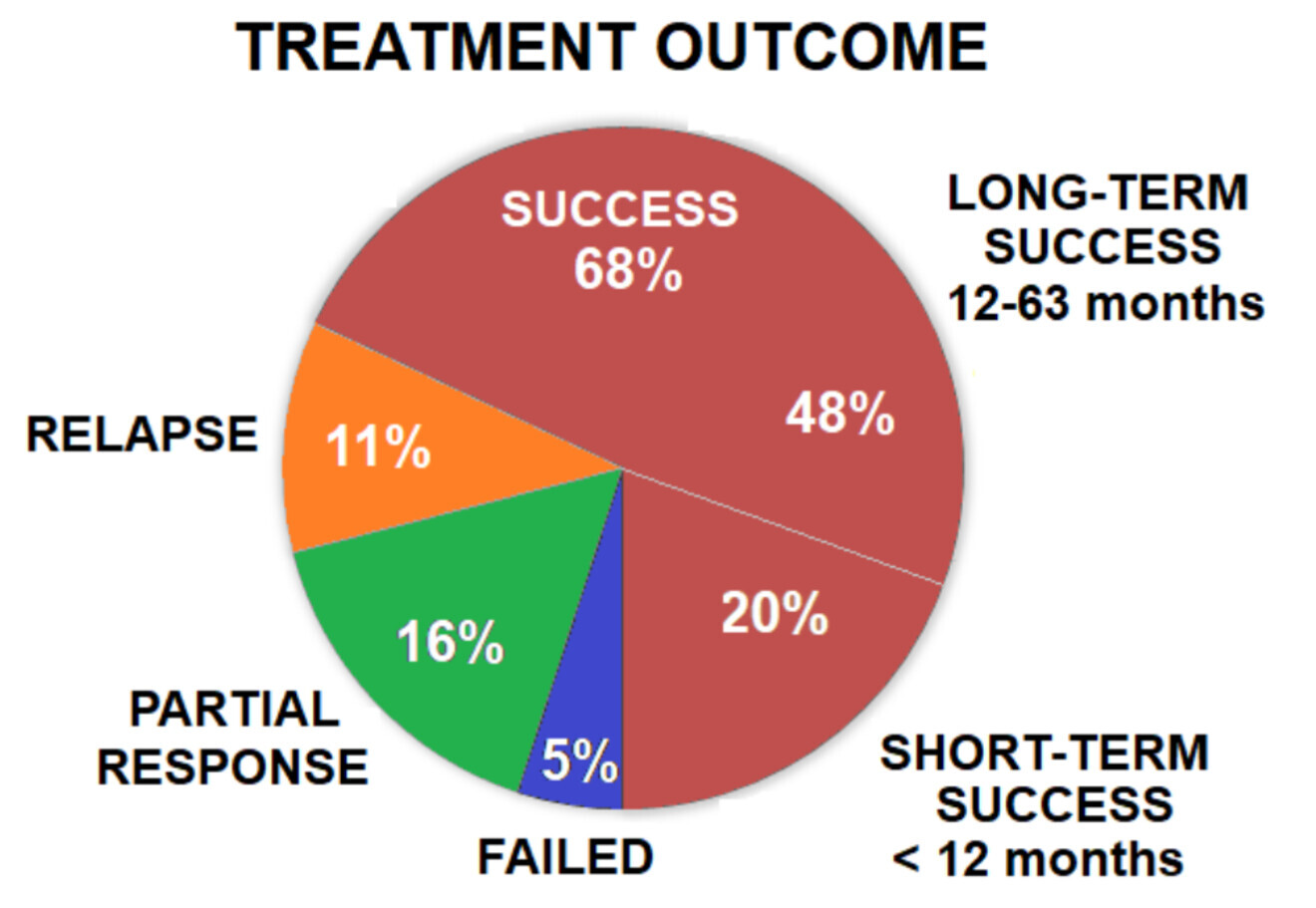

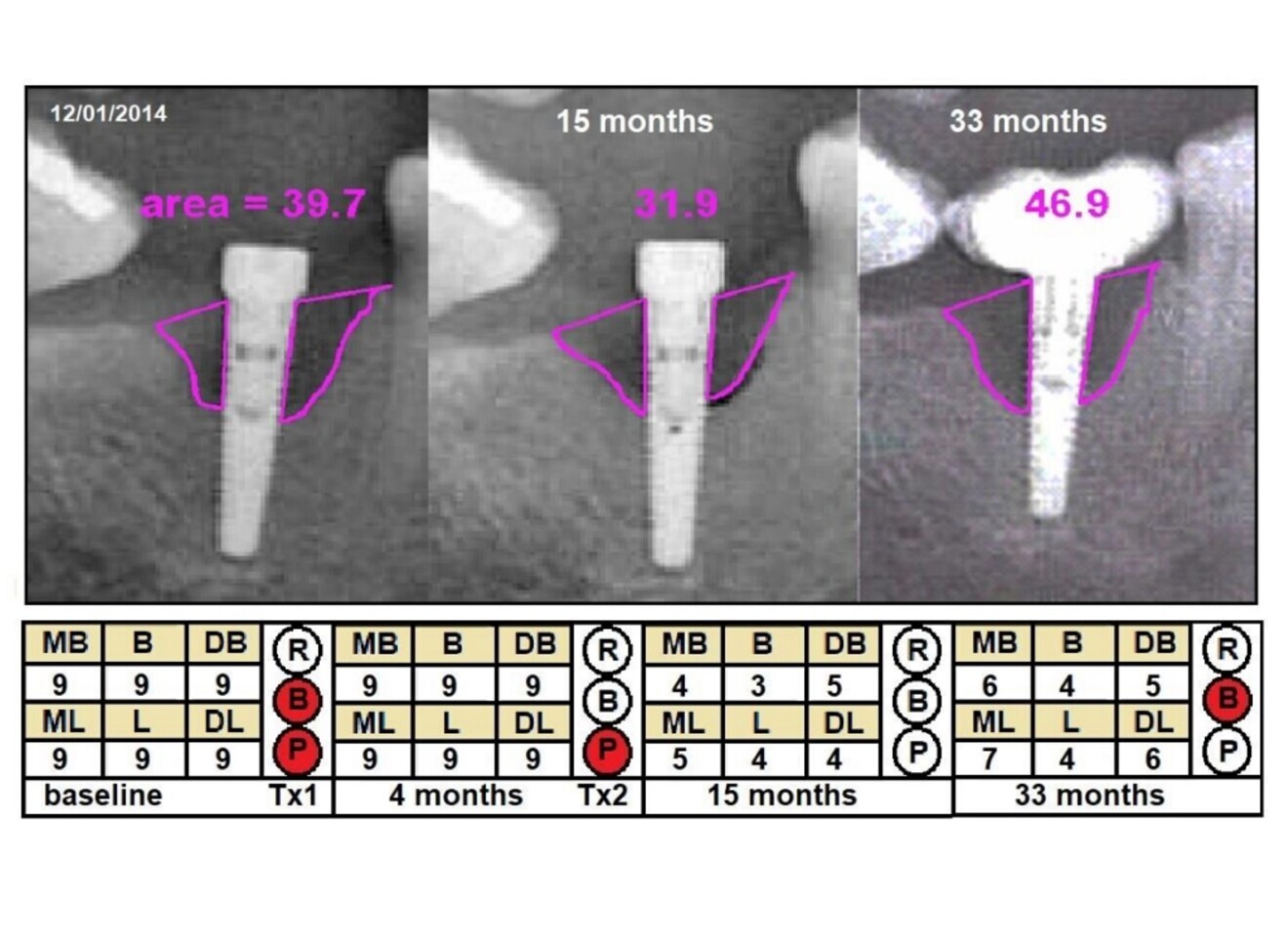

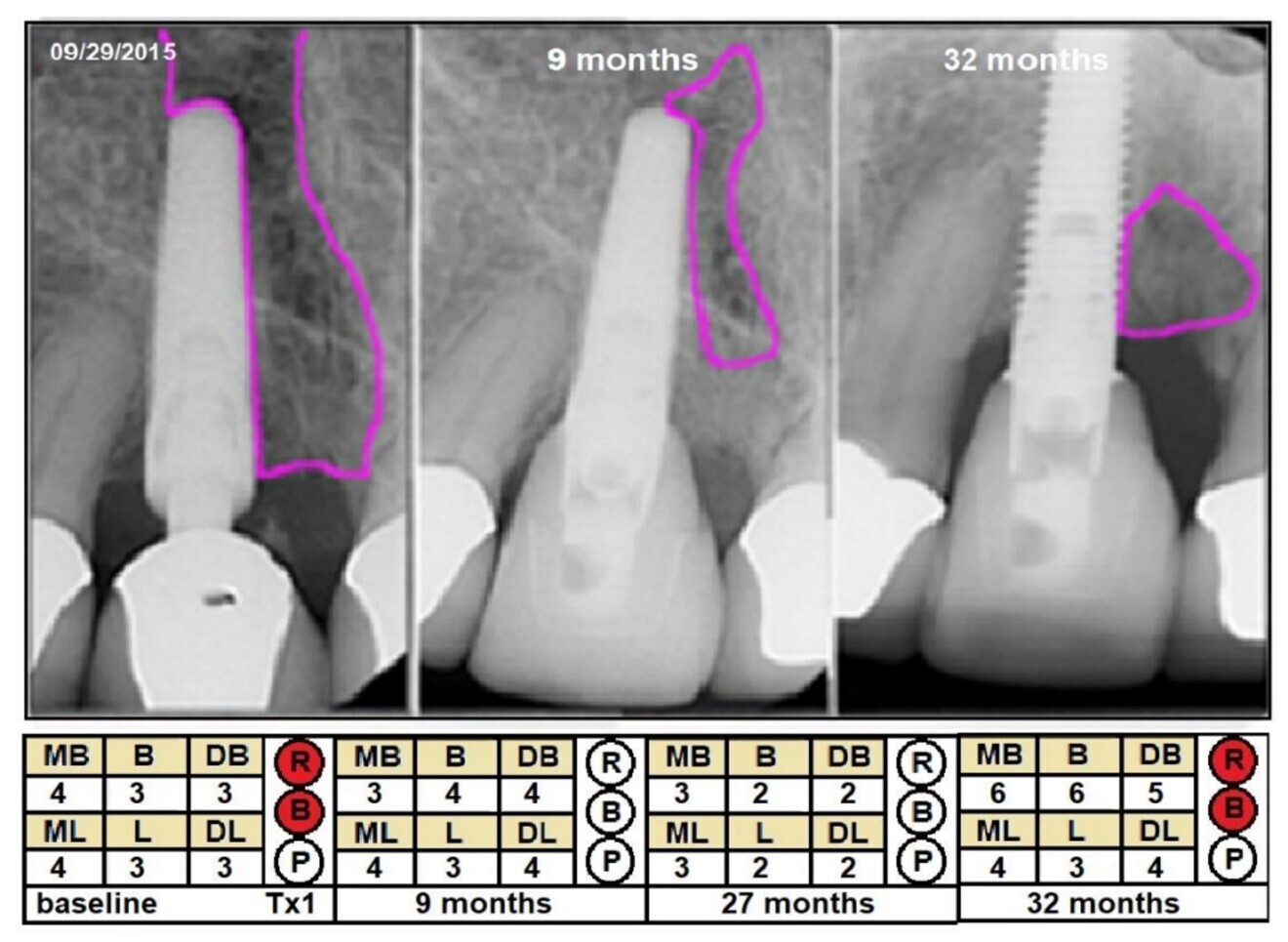

Long-term clinical and radiographic data are presented from the same group of 222 patients. There was a continuum of responses, including long-term successes, partial responses with intact implants and implants lost after two years of maintenance with multiple treatments, as well as cases of successful treatments that relapsed after one to two years. Analysis of radiographic data from a sample of successfully treated implants provided a time course for bone regeneration.
Methods
Collection and analysis were performed of retrospective data, wherein patient records were sorted to find all patients in the practice who had undergone LAPIP treatment within the 37-month interval from the first treatment (October 2013) until the date of institutional review board approval (October 2016). A private institutional review board (Quorum Review) granted a waiver of informed consent and approved the retrospective data collection and analysis protocol. Later, the institutional review board approved the retrospective analysis of the long-term follow-up data that is included in this report. The original study was conducted according to standards established by the Declaration of Helsinki and Good Clinical Laboratory Practice Guidelines. Research standards established in the original study were maintained in the current study.
The purpose of the original study was a precise statistical analysis of the initial clinical outcome of a single treatment, seeking to determine whether there was improvement or a lack of improvement at the first follow-up visit. A review was conducted of patients who received the treatment in the three years after the LAPIP training. All patients were included to eliminate selection bias. A staff member went through the medical records of each LAPIP patient and copied data into case report forms. Any identifying information was excluded, and the case report forms were sent electronically to the statistician for data entry and analysis. Data captured included laser settings, demographics, medical history, implant information, adverse events, PD (mm; for six pockets) and the presence of clinical signs (bleeding, erythema and/or suppuration). Panoramic and/or periapical radiographs were available for analysis. The statistician excluded patients with missing data from the various analyses. The original group included 222 patients with 437 implants. That study enrolment closed in October 2016. Exclusion of patients with incomplete data resulted in 116 patients with 224 implants available for analysis, including 47% men and 53% women with a mean age of 65.8 years (range: 23–98 years).
Two years later (September 2018), a second look at the original group of patients was performed. Several patients had follow-up visits beyond the closing date of the original analysis. Case report forms of additional follow-up visits were collected, uploaded and added to the original data set. This resulted in 155 patients with 299 implants who had sufficient baseline and follow-up data to determine implant survival and clinical outcomes.
Laser dosimetry
The dental laser was a 6 W pulsed Nd:YAG laser (PerioLase MVP-7) utilising an optical fibre that delivered high-energy pulses of light to the tissue. For the LAPIP, the fibre tip is inserted into the periodontal pocket. Parameters that are set on the control panel are energy per pulse up to 300 mJ; pulse duration, variable from 100 to 650 µs; and pulse repetition rate from 10 to 100 Hz. The duration of exposure is controlled with a foot switch.
The LAPIP details have been published elsewhere4–7 and are only summarised as follows for the protocol specifying surgical end points. Achieving those end points is what determines the dosimetry. In Step 2 of the protocol, the distal fibre tip is inserted into the periodontal pocket and passed around the implant several times to initially open the sulcus and then to remove the diseased pocket epithelium and disinfect the tissue, constituting Pass 1 with the laser.10 In Step 4 of the protocol, the fibre tip is inserted into the pooled blood within the sulcus and again passed around the implant, heating and congealing the blood and forming a fibrin clot, constituting Pass 2 with the laser.11
Hence, real-time dosimetry is based on these clinical conditions. With a constant laser power (output), the time spent lasing within the sulcus determines the total energy delivered. In other words, a prescribed laser dose does not determine the treatment end point; rather, achieving the surgical end point determines the total joules. The surgeon understands that clinical conditions determine the precise laser parameters and the total energy delivered. However, exceeding the recommended dosimetry increases the risk of possible adverse effects.
The hard copy printout of the laser dose for Pass 1 and Pass 2 was available for 138 implants, and the mean total energy per implant was 285.8 J. This was divided between the two laser steps. Pass 1 mean total energy was 181.8 J, and Pass 2 mean total energy was 104.0 J. Energy was delivered according to the following formulas, and sizable case-to-case variance was required to achieve the surgical end points:
These two formulas are not a prescription; they merely define the dosimetry used in this study. On average, Pass 1 required an initial 130 J for all implants, and Pass 2 required an initial 85 J. The formula specifies that the total joules per pass is related to the average probing depth (aPD; the average of six PD measurements). Consequently, to estimate the total energy, add ten times the aPD in joules to the initial values for Pass 1 and four times the aPD for Pass 2.
Radiographic analysis

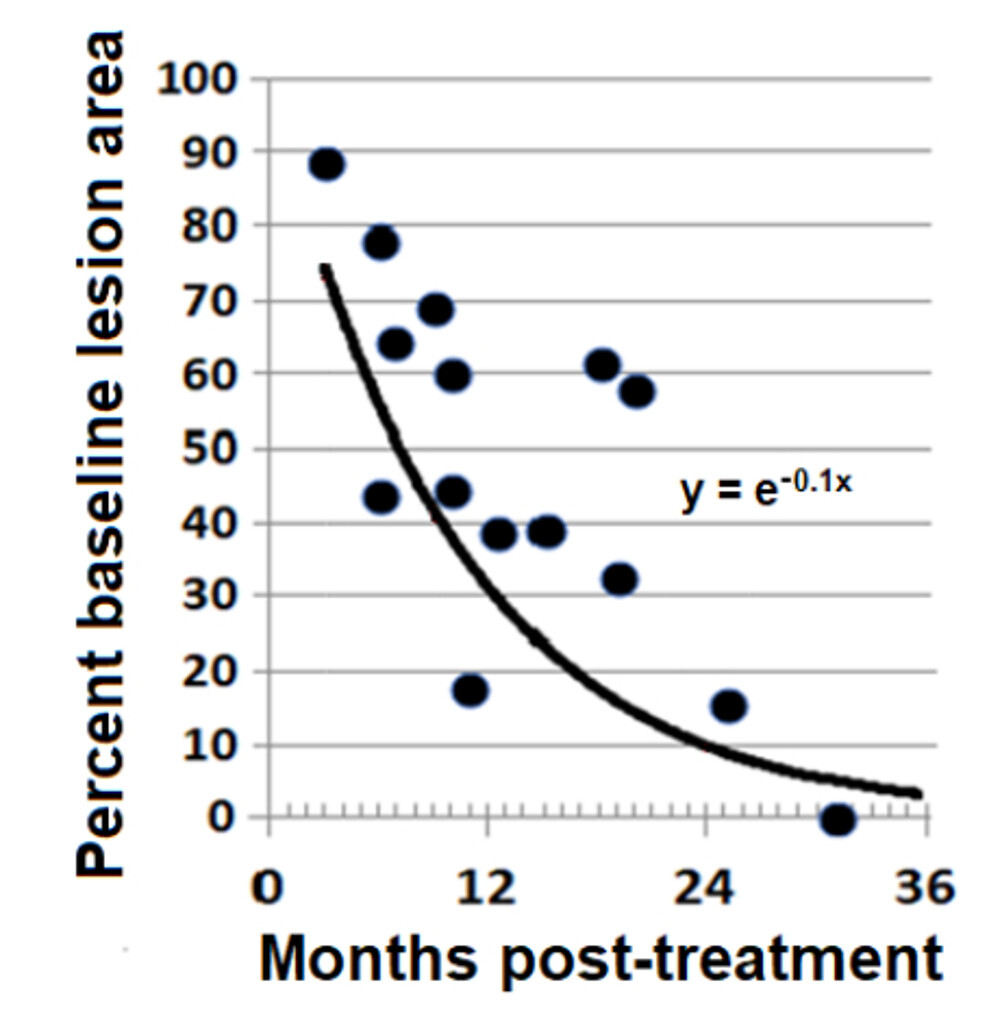

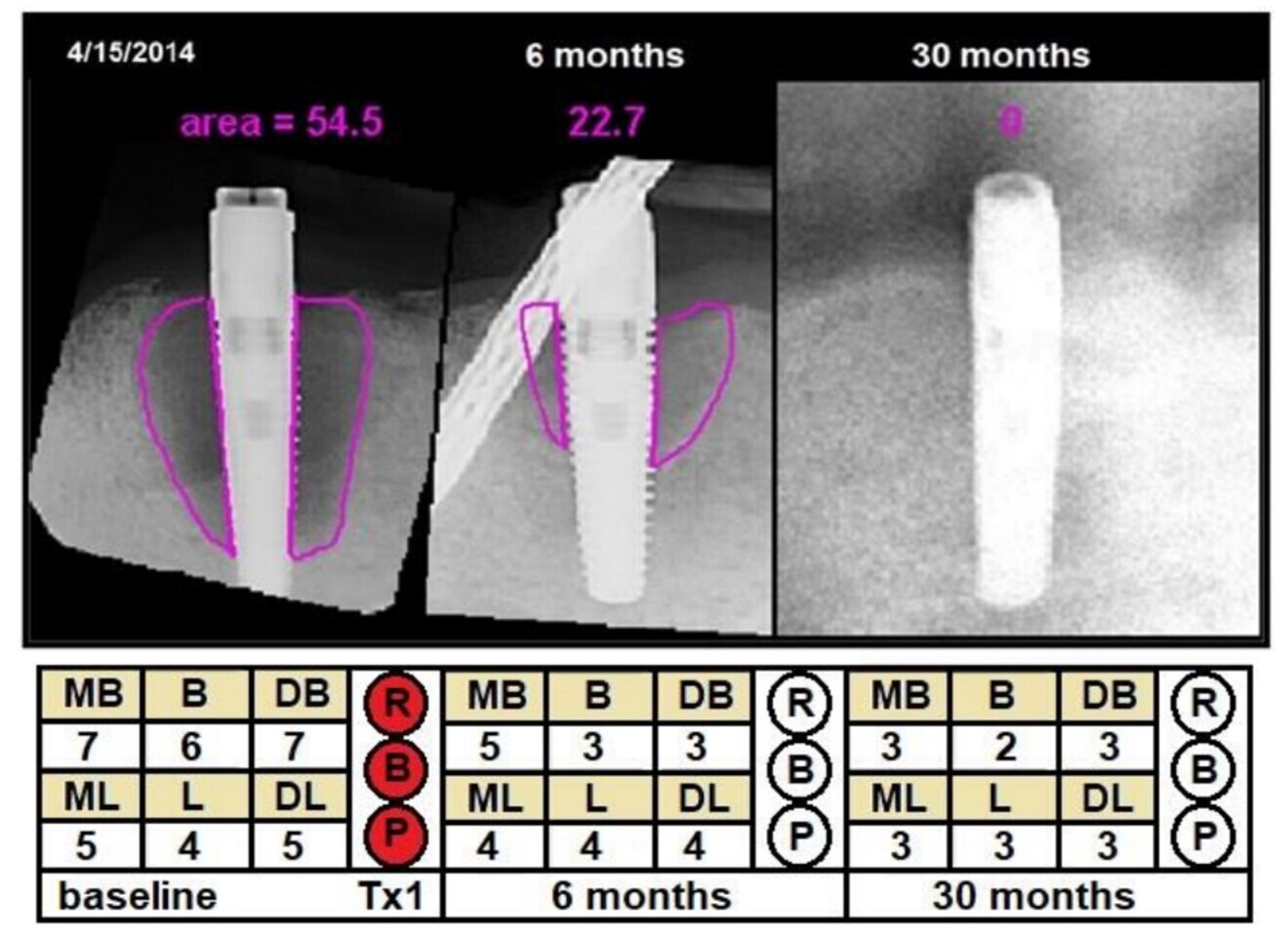

Film radiographs were scanned and digitised and then the digital radiographs were rotated, cropped and resized. Brightness and contrast were not adjusted. Images were arranged in chronological order to illustrate the sequential changes in radiographic density for each case. A technician skilled at reading dental radiographs outlined the radiographic defect and areas of change in subsequent images. The cross-sectional area of the defect within the outlines was measured using public domain software (ImageJ, National Institutes of Health freeware). As the dimensions of the implant were known, the areas were calibrated in square millimetres so that comparisons could be made over time and across cases. The sum of the defect areas on both sides of the implant is referred to as the cross-sectional area. Cross-sectional areas at follow-up visits of successful cases were converted to baseline percentage to estimate the time course of bone regeneration.
